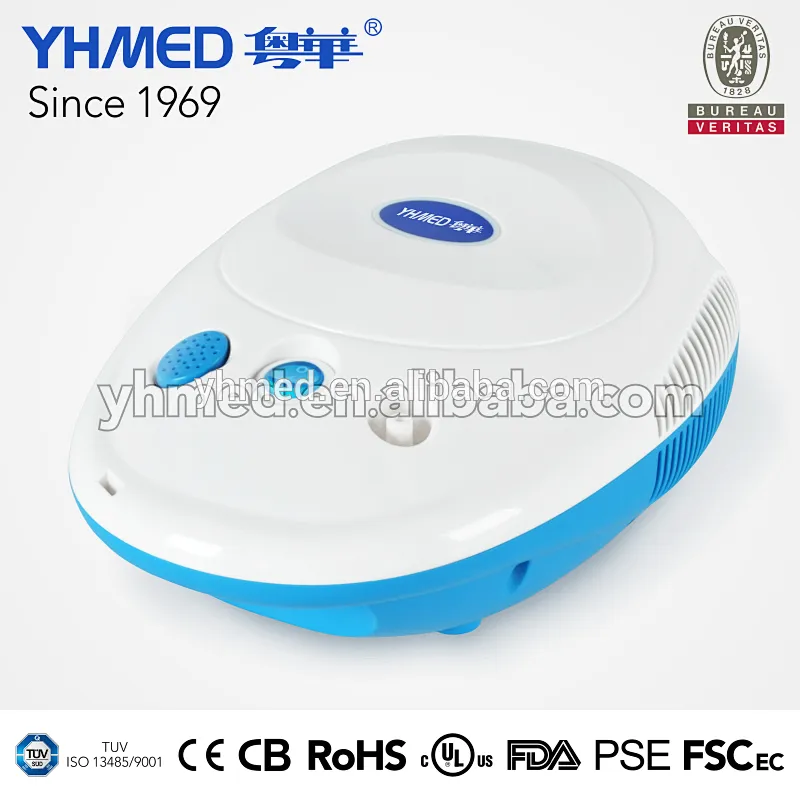

Piston Compressor Nebulizer/Medical And Home Nebulizer

• Place of Origin:CN;GUA
• Model Number:CN-200
• Brand Name:YHMED
• Properties:Medical Polymer Materials & Products
• Type:General Medical Supplies
• Electrical:AC 230V-50Hz or 120V-60Hz
• Input Power:160VA or 180VA
• Medication Capacity:6ml(cc)
• Average Nebulizing Rate:≥0.25ml/min
• Noise Level:Below 55dB (A)
• Operation Pressure Range:9-16 Psi (62kPa~110kPa)
• Liter Flow Range:5-8 LPM
• MMAD:3.0μm
• Unit Size:200mm*165*90mm
• Unit Weight:1.13 KG

Inhaler Mini Nebulizer Machine

               Specification:

• Input Power :160VA or 180VA
• Power: AC 230 V-50Hz or 120V -60Hz
• Rate Current: 0.7A or 1.5A
• Max Capacity of Medicine cup: 6ml (cc)
• Average Nebulization Rate: ≥0.25ml/min (0.9% Saline Solution)
• Mode of Operation: continuous >24 hours
• Max Working Pressure : ≥35 Psi (345Kpa; 3.5 Bar)
• Operation Pressure Range: 9-16 Psi (62-110Kpa; 0.6-1.1 Bar)
• Liter Operation flow: 5-8 LPM
• Noise: ≤55 dB(A) ( at 1 meter distance )
• MMAD: 3.0 μm (0.9% saline/ tested by Cascade Impactor )
• Unit Size: 220X 165 X 90 MM
• Unit Weight: 1.13 KG
• Operation Condition: 5℃ to 40℃, 15% RH to 93% RH
• Suggested Applications : Hospital, clinic, atomizer room, nursing home, personal homecare.r room, nursing home, personal homcare.

                 Packing & Shipping:

• Color giftbox+ Plastic inner tray+ Instruction manual
• Carton size: 42 X24 X 50 CM  (8pcs/ carton)
• Net Weight : 12.3 KGS   Gross Weight: 13.1 KGS
• 1 X 20″FT Container : 4500 pcs
